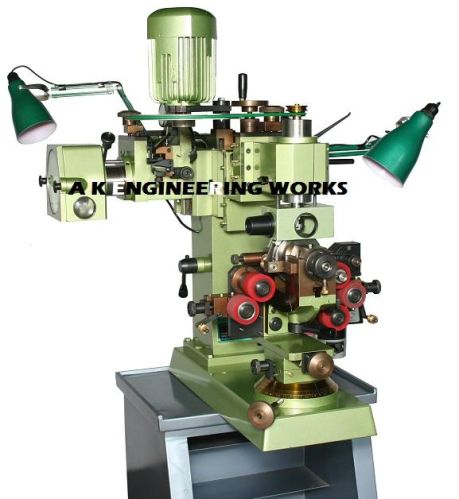

Diamond Cutting Machine

Listing ID #958370

We are offering chain diamond cutting machine/ faceting machine model.
model ‘deluxe - c’ is a self-centring revolving head diamond cutting machine featuring one horizontal and one vertical head with remarkably high precision spindles. The machine is suitable for mirror finish lapping (plain cut), lines, stars, bevels, chamfers & step cut on flat chains. Revolving of heads is done with extreme ease with a push of a lever which takes not more than 5 seconds. Manual feed lever with an adjustable depth screw for depth of cut on job for step cut. Micromatic screw for depth adjustment for lapping and chamfers. Chain is pulled forward continuously by pmdc motor and controller at speeds ranging from 0-110 rpm or manually in steps by 120 teeth divider gear mechanism. (step cutting) the machine is complete with a sturdy base, indexing unit, ø 110 mm revolving clamping discs, vacuum attachment for gold chips recovery, chain winder with bobbin (optional), magnifying glass attached to machine, depth indicator dials, electric panel board, service spanners & spare belts. Specifications: horizontal spindle speed: 8000-10000 rpm. Vertical spindle speed: 28000 rpm. Tool holder diameter: ø 120 mm. Puller speed: 0-110 rpm. Machine weight: 225 kg. Power supply: 1 phase. 230v. 50hz. Max. Machine dimensions: l x w x h 28 x 40 x 32 (inches). Packaging dimensions: 34 x 34 x 36h (inches).
