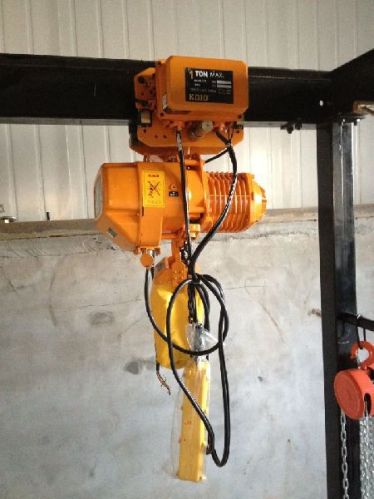

Chain Electric Hoist

Product description electric chain hoist widely applied to mold, mechanical manufactur warehouse, logistics, shipbuilding, bridge construction, and other industries as well as factories and other special purposed. Advanctages: 1.light weight 2.small size limit 3.high level of work 4.good performance, high reliablity and low failure rate 5.chain sprocket, easy in use decidous or job-hopping, more stable 6.work with low noise, overload ability, braking torque. Detail parameters  normal model: 0.3- 35tons with motorised trolley, or suspension hook compact series model: 0.3-10t low head room type: 1-10t super-low lifting loop chain electric hoist the minimum size: 1t -480mm the maximum size: 10t- 880mm model dhl 0.3-01 0.5-01 01-01 01-02 01-03 02-01 2.5-01 03-01 05-02 7.5-03 nominal load (t) 0.3t 0.5t 1t 2t       3t 2t 2.5t 3t 5t 7.5t lifting speed (m/min) 8.0 8.0 6.8 3.4 2.3 9.4 6.8 5.6 3.4 2.3 moto power (kw) 0.8 0.8 1.5 1.5 1.5 3.0 3.0 3.0 3.0 3.0 rotate speed (r/min) 1440 r/min motor insulation class f working voltage   380/220 control voltage 24v / 36v / 48v chain black number 1 1 1 1 2 1 1 2 3 2 chain size φ6.3 φ7.1 φ10.0 φ10.0 φ7.1 φ11.2 φ11.2 10.0 φ7.1 φ11.2 net weight (kg) 47 61 108 115 73 115 122 131 85 151.
