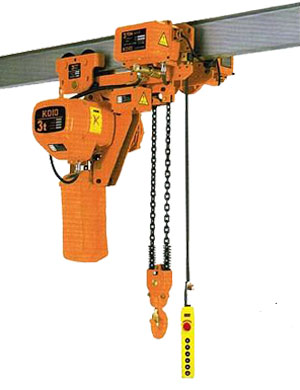

Chain Electric Hoist

Product Features: Shell--Made of die-cast aluminum alloy, light but hard. Motor--Adopt the Side Magnetic Series YEP Braking Motor. Gear--Made of alloy steel by carburizing quenching treatment. Thus transmission with low noise and high efficiency is guaranteed. Inverse phase sequence protecting device-- Controls the circuit not to work in case of wiring error in the power supply Side Magnetic Braking Device--Allows instant brake as soon as the electric power is cut off. Chain bag--Light, attractive and durable. Chain--FEC G80 chain Hook--Hot forging with perfect strength that is hard to break. Model DHL 0.3-01 0.5-01 01-01 01-02 01-03 02-01 2.5-01 03-01 05-02 7.5-03 nominal load (t) 0.3t 0.5t 1t 2t       3t 2t 2.5t 3t 5t 7.5t lifting speed (m/min) 8.0 8.0 6.8 3.4 2.3 9.4 6.8 5.6 3.4 2.3 moto power (Kw) 0.8 0.8 1.5 1.5 1.5 3.0 3.0 3.0 3.0 3.0 rotate speed (r/min) 1440 r/min Motor insulation class F working voltage   380/220 control voltage 24V / 36V / 48V chain black number 1 1 1 1 2 1 1 2 3 2 chain size Φ6.3 Φ7.1 Φ10.0 Φ10.0 Φ7.1 Φ11.2 Φ11.2 10.0 Φ7.1 Φ11.2 net weight (kg) 47 61 108 115 73 115 122 131 85 151.
