Channels Use Air Driven Concrete Shotcrete Machine

Channels use air driven concrete shotcrete machine
technical data:
name: dry shotcrete machine
model no:pz-6
flow:6m3h
pressure:0.2mpa-0.4mpa
air consumption:8-10m3min
power:5.5kw
voltage:380v
transmission distance:200m
transmission height:20m
maximum aggregate size:20mm
outlet diameter:51mm
weight:600kg
dimension:1520*820*1280mm
loading height 1.1m
features:
1. No blocking
2. Dustless.
3. Low rebound rate.
4. Components durable.

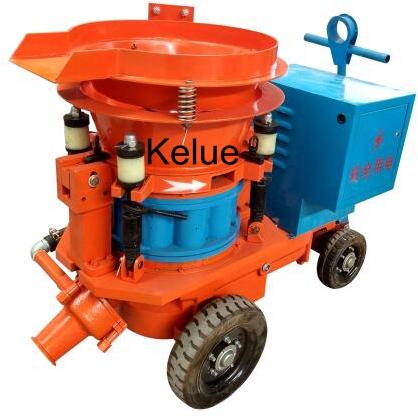

Pz-6 dry concrete spray machine is a device used for dry concrete shooting. This series shotcrete machine have the advantages of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, long service life, etc. It is widely used in mine, tunnel, culvert, subway, underground engineering and coal mine drainage tunnel construction work.
