Chapati Making Machine, Availability : Approx. 50-60 Lbs

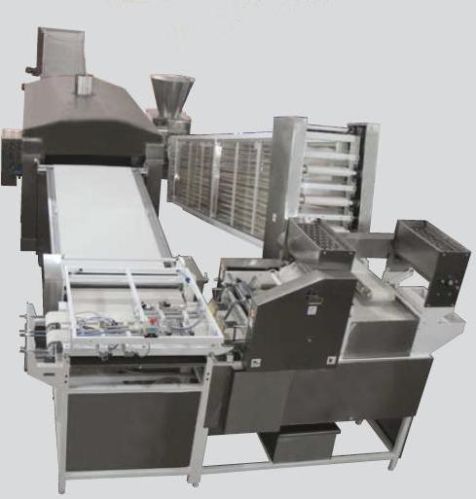

We are offering full automatic line for flat bread to produce the chapatti, lavash, tortilla and naan bread.
1.dough divider – double output
o special food grade quality felt conveyor belts
o double discharge aluminum head
o precise control of dough-ball size (40 to 250 grams) using photo sensors
o electropneumatic cutting system
o digital control for speed
o installed power: 1.5kw380v50-60hz3 phase
2.primary proofer
o 7 fermentation layers with special food grade quality felt conveyor belts
o digital control for speed
o installed power: 1.5kw380v50-60hz3 phase
3. Dough flattener – double quadruple output
o special food grade quality felt and p.v.c conveyor belts.
o double or quadruple stage flattening via a special plc system. It can produce 2 loaves with a diameter up to 40 cm 4 loaves with a diameter up to 19 cm.
o digital control for speed
o electropneumatic stage shift from oval to circular shape
o installed power: 3.0kw380v50-60hz3 phase
4.tunnel oven with feeding belt
o equipped by gas pipes with an automatic cutoff safety valves
o low emissions combustion process and low gas consumption.
o 2 layers of heat resistant steel chain conveyor plates and 1 out feed mesh wire belt.
o electrical control panel for gas operation, and a meter to indicate temperature inside the tunnel oven
o digital control for speed
o installed power: 1.5kw380v50-60hz3 phase
5.cooling conveyor – layers model
o aluminum straight conveyor's chassis.
o plastic cooling conveyor chain
o digital control for speed
o installed power: 1.5kw380v50-60hz3 phase.
