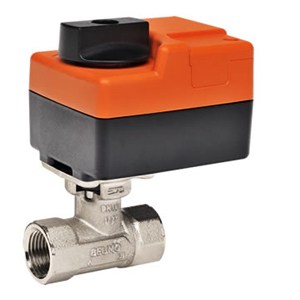

Characterized Control Valves

Click here for direct links to Belimo YouTube instructional and informative videos. Check back frequently, as new videos are always being added!
True Advancement in Control Valves
Ball valve design offers self-cleaning and zero leakage
Rated for water temperatures up to 250 deg. F
Maintenance free – no repacking required after being in service for an extended period of time
2-Way CCV
Equal percentage flow characteristic yields a linear heat output.
Cv values equal globe valves of the same size requiring no additional system design.
Valve bodies available with stainless steel or chrome plated brass trim depending upon application and cost.
Higher close-off rating ensures shut off.
Applications
The Characterized Control Valve marks a true advancement in control valves. It combines the high close-off capabilities of a ball valve with a specialized disc that ensures a true equal percentage flow characteristic. CCV are available with spring return and non-spring return actuators. The CCV offers a comprehensive Cv range for various applications, such as air handlers, heating and cooling coils, fan coil units, unit ventilators, and VAV re-heat coils.
3-Way CCV
Equal percentage flow characteristic yields a linear heat output.
Cv values equal globe valves of the same size requiring no additional system design.
Valve bodies available with stainless steel or chrome plated brass trim depending upon application and cost involved.
Higher close-off rating ensures shut off.
3-way bodies can be piped for mixing or diverting applications.
