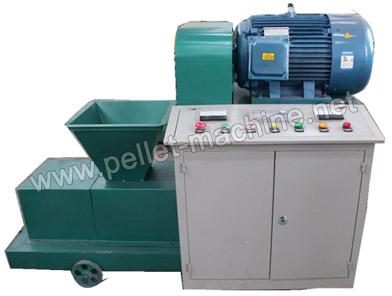

Charcoal Briquette Machine

We are offering charcoal briquette machine.
charcoal briquette machine introduction
charcoal briquette machine is the main equipment to make solid fuel with biomass material such as wood sawdust, rich shell or peanuts shell, etc. After the raw material being crushed and dried, they will be formed into biomass briquette under high pressure and temperature by our charcoal briquette machine.
requirements of the raw materials
1.when using several different type of mixture as raw material, you should fully mix them to get high quality biomass briquette.
2.the material size for briquette should be less than 5mm, if not, you should crush them first.
3.moisture 8-12%,if raw material have high moisture, they should be dried by air flow drier or rotary dryer
charcoal briquetting process
1. Crush the raw materials (wood, wood branch, coconut shell, peanut shell, rise husk, sunflower husk) into size no bigger than 5mm.
2. Dry the biomass sawdust to 8-12%.
3. The shape of briquette can be round, quadrangular, hexagonal, etc.
4. Make wood briquette carbonized in the carbonized oven.
charcoal briquette machine working principle
briquetting is a process that biomass is compressed under high pressure and high temperature, the lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus it can bind and compress the biomass to form into high density briquettes. During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for furnaces, boilers and open fires.
charcoal briquette application
1.boilers: biomass briquette can be used in the boilers of paper plant, dyeing house, leather making plant, food processing, oil extraction industry, solvent extraction plant and many other industries.
2.foundries for metal melting with the melting point less than 1000d/cel.
3.brick kilns for the substitute of coal.
4.residential and commercial heating
charcoal briquette machine technical data
model power output moisture of materials size of sawdust weight dimension
aly-11 11+6kw 180-210kg/h 8%-12% 3-5mm 700kg 1800*760*1290mm
aly-15 15+6kw 180-210kg/h 8%-12% 3-5mm 590kg 180*760*1290mm
aly-22 22+9kw 350-420kg/h 8%-12% 3-5mm 1180kg 2020*870*1500mm
