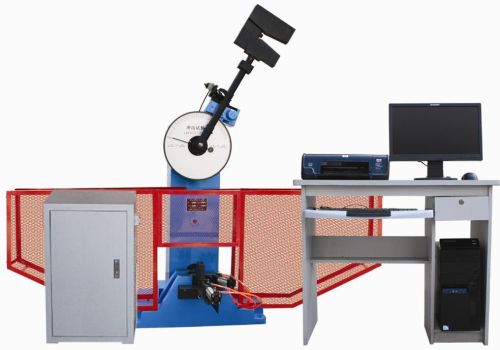

Charpy Impact Testing Machine

We are offering charpy impact testing machine/pendulum impact tester/testing and measuring instruments ⅱroom -temperature automatic impact testing machine jbs-300z/500z digital display room-temperature automatic impact testing machine jbw-300z/500z computer control room-temperature automatic impact testing machine main technical parameters clutch torque force 630n.m 1000n.m impact energy 300j 150j 500j 250j value of every grid 2j 1j 5j 2.5j moment of pendulum 160.7695n.m 80.3848n.m 267.9492n.m 133.9746n.m impact speed 5.2m/s 5.4m/s distance between center of pendulum and sample center 750mm 800mm angle of pendulum rising in advance 150° span of supports 40mm jaw fillet of support r(1.0~1.5)mm(1mm is special order) fillet of impact blade r(2.0~2.5)mm(8mm is special order) included angle of impact knife 30° thickness of impact knife 16mm dip angle of supporting surface of supports 11° specification of specimen (10,7.5, 5.5)x10x55mm speed of delivery ≤4s capacity of sample box 10 size of host (l×w×h) (800×500×1275)mm supply and power 380v 50hz 250w 380v 50hz 380w advantages the host of this machine adopts casting steel material can make the equipment run steadily at the whole process of test and get more accurate result. Transporting structure of our impact testing machine adopts pneumatic and automatic transporting samples to overcome the difficulty of centering specimen every time to improve working efficiency. The host is plc automatically control, which has high stability and strong anti-interference ability. Computer control and all the results of test can be saved in computer, be printed and be upload.
