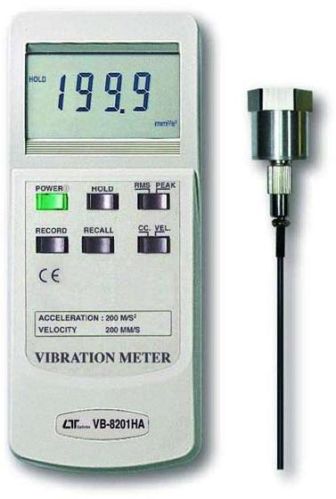

Charun Vibration Meter

Get Latest Price

Brand NameCharun
Country of OriginAhmedabad
Acceleration Range200 m/s2,RMS & Peak measurement,Microcomputer circuit
Frequency Range10 Hz-1 KHz
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Charun Instruments

Maninagar, Ahmedabad, Gujarat

View Number

Member Since 22 Years
Nature of Business Retailer
Year of Establishment 1997

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameCharun
Country of OriginAhmedabad
Acceleration Range200 m/s2,RMS & Peak measurement,Microcomputer circuit
Vibration Meter Requires6 mA DC power for operation
Velocity Range200 mm/s
Frequency Range10 Hz-1 KHz

Vibration Meter, offered by us, is widely used for industrial vibration monitoring. This Vibration Meter offers measurement in the frequency range of 10 Hz-1 KHz. It also features super large LCD display, memory function to recall minimum and maximum reading with recall. Also, our Vibration Meter requires 6 mA DC power for operation.
Features

Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment and looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
Supply with vibration sensor & magnetic base, full set.
Velocity Range : 200 mm/s.
Acceleration Range : 200 m/s²
RMS & Peak measurement
Data hold, Memory ( Max. & Min. )
Separate vibration probe.
Optional data acquisition software.
Microcomputer circuit.
Auto shut off saves battery life.
Hard carrying case include.

Specifications

Display	61 mm x 34 mm supper large LCD display. 15 mm ( 0.6" ) digit size
Measurement	Velocity, Acceleration RMS value, Peak value, Data hold, Max. & Min. value.
Range	Velocity : 200 mm/s : 0.5 to 199.9 mm/s
Range	Acceleration : 200 m/s2 : 0.5 to 199.9 m/s²
Frequency Range	10 Hz to 1 KHz Sensitivity relativive during the frequency range meet ISO 2954
Accuracy	± ( 5 % + 2 d ) reading @ 80 Hz, 160 Hz @ 23 ± 5^oC
Calibration point	Velocity : 50 mm/s (160 Hz)
Calibration point	Acceleration : 50 m/s2(160 Hz)
Circuit	Exclusive microcomputer circuit
Data hold	Freeze the desired reading.
Peak measurement	To measure the peak value.
Power off	Auto shut off, saves battery life, or manual off by push button.
Memory	Maximum & Minimum value
Sampling time	Approx. 1 second.
Operating temperature	0 to 50^oC( 32 to 122^oF ).
Operating humidity	Less than 80% RH.
Power supply	Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 (PP3) or equivalent.
Power consumption	Approx. DC 6 mA.
Weight	Meter : 274 g/0.60 LB
Weight	Probe with magnetic base : 38 g/0.08 LB
Dimension	Meter : 185 x 78 x 38 mm ( 7.3 x 3.1 x 1.5 inch ).
Dimension	Vibration sensor probe : Round 16 mm Dia. x 29 mm.
Accessories included	Instruction manual................. 1 PC
	Vibration sensor ( VB-81A )..................... 1 PC.
	Cable.................................... 1 PC.
	Magnetic base....................... 1 PC.
	Carrying Case........................ 1 PC.
