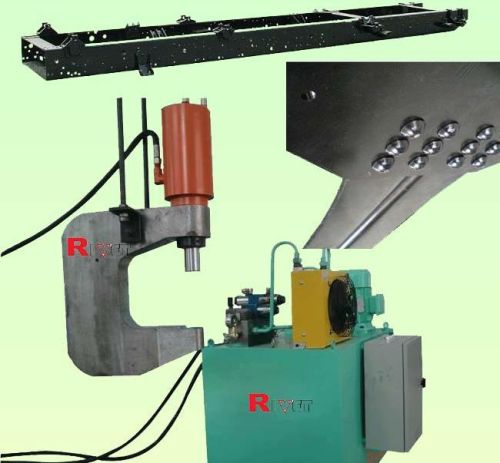

Chassis Riveting Machine Xgm-16,Hanging Riveting Machine

We are offering xgm-16(chassis riveting machine)
characteristics:
a.hanging and movable style
b.max.process ability φ16mm(cold)φ25mm(hot)
c.manual and automatic switching
d.auto loop boosting cylinder
e.one hydraulic station can reserve two sets of connect mouth, can match 2-sets of c-gun.
F.hydraulic power pack connect with variety of c-gun available
g.any direction operation
h.short-circuit protector in some areas, the common riveting machine can not processing due to the span of workpiece and heavy with large body, at this time you might considering the traveling riveting machine (hydraulic power pack with c-gun, also called it as hanging machine). This machine pressure is powerful and stable during process, after process that the surface are smooth and beautiful.the machine's pressure, speed, system pressure are adjustable to insure the achieve a perfect result. specification of model:xgm-16
1.max.pressure 500kn
2.oil punp output 6.3mpa
3.frequency of process 14-25 timesmin
4.max.process diameter φ16mm cold, φ25mm hot
5.rated flux 40lmin
6.poston stroke 95mm
7.cylinder diameter φ140mm
8.power 4kw
