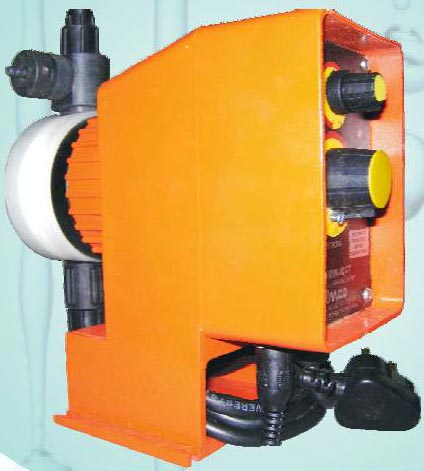

Chemical Dosing Pump

Chemical Dosing Pump with (RC 11) is manufactured, exported and supplied by us in Kolkata, West Bengal. Our Chemical Dosing Pump finds its application in diverse industrial units. We make sure that Chemical Dosing Pump that we provide is made as per high industrial standards. We use premium metal for making Chemical Dosing Pumps that gives good strength and durability to the product. Salient Features

• Glandless and Leakage free diaphragm pumps
• Solenoid driven pulsar circuit
• Excellent proportional control & injection frequency
• Unique double ball check cartridge for dosing accuracy and anti syphon system
• Teflon faced Hypalon diaphragm for long lasting
• Suction lift 3 mts.
• Integrated low level switch (as optional)

• Housing : G. F. P. P.
• Spacer & Head : Poly Proplene/PVC
• Diaphragm : Teflon faced Hypalon
• Ball : P T F E /Ceramic
• Suction/Discharge Tubing : HDPE/LDPE
• Suction / Discharge valve : PP/PVC

• Suction / Discharge Tube: 3 mts (roll)
• Antisyphon / Non Return Valve: 01 no.
• Self Balanced Foot Valve: 01 no.

• Integrated low level switch
• PVC/FRP solution storage/preparation tank with level gauge
• Agitator (SS/PP) with motor (Slow/high speed)
• Agitator (SS/PP) with gear motor

• 100 liters cap hopper bottom F R P construction solution preparation cum storage tank with lid, level gauge, water inlet, solution outlet and sludge drain connection.
• Combined Gear & motor assembly or only motor
• Motor - 1500 RPM / 960 RPM, 440 / 220 V 50 Hz
• SS-316/PP agitator with sweep blade
• Facilitate with Port hole, pump mounting facility on lid
• The total unit is portable and can install at any place for disinfection/bacteria free drinking water
