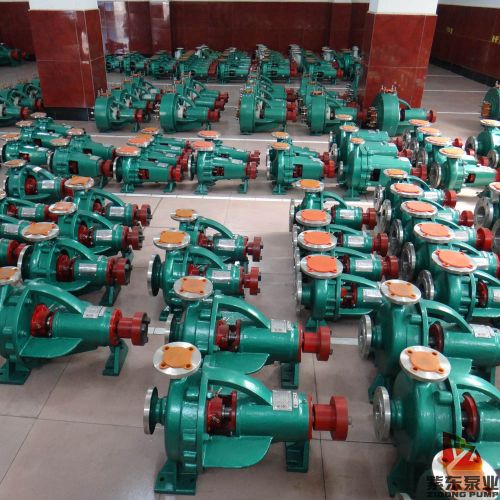

Chemical Liquid Pump, Brand Name : zidong

1, ihk series filter press pump technical parameter
a) caliber: dn50-dn200mm
b) flow: 6.3-400m3hr
c) head:2-125 m
d) rotate speed: 1450,2900rmin
e) motor power:0.19-94.56 kw
f)working temperature: -20-280â°c
g) system work pressure �1.6mpa
2,main features
1)the ih series are newly designed single-stage, single suction and cantilever centrifugal pumps
2) economy high efficiency product
3) stable capability and standard components
4) stainless steel material contain 304,316l,cd-4mcu,904,904l
5) kazak alloys density scope is p=1.0~1.84ã�103kgm3
3,main usage
mainly used in chemical, oil, petrochemical industry, metallurgy, light industry, printing dyeing, pharmaceutics, environment protect, seawater desalt, paper making, food and etc
4,part of performance table and curve.
