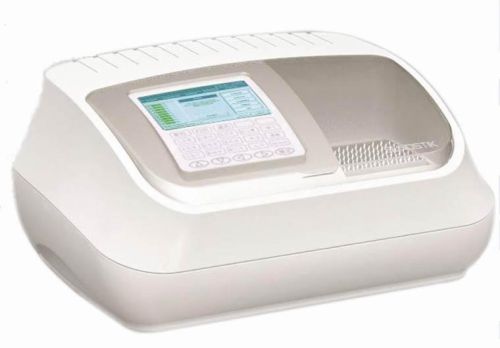

Chemiscan Microplate Reader

We have Chemiscan Microplate Reader.
Characteristics
• Advanced optical system, ensure accurate result and good repeatability.
• 8 channel optical fiber systems enable 5 secs’ reading for 96 well plate.
• Bichromatic measurement, multi-calculation methods include ABS, Cut-off, Linearity and Log.
• Easily programmable and operate through PC software or keyboard
• Ability to communicate with PC, free PC operating software
• Plate shaking feature
• 405nm, 450nm, 492nm, 630nm, 4 free positions
To carry out ideal operation and data management for Elisa test, we provide an intelligent PC software for CHEMISCAN
• Working base on Windows system
• Control machine, test programming, calculating results and indicating reagent recession curve.
• Multi-calculation methods on board: linearity, LogX, logY, logXY, Parabola regression, Polynomial regression, 4PL Regression.
• A complete data administration system for: micro-plate, reagent, patient, laboratory and results
Specification
Reading Speed: 5 seconds for 96 well plate
Light source: Halogen lamp 8V50W
Filters: 405nm, 450nm, 492nm, 630nm, 4 open positions
Photometric Range: 0.000-4.000Abs
Photometric Accuracy: ±1%(0.000-2.000Abs)
Wavelength Range: 340~750nm
Applicable programs: 28 except of PC
Measure Mode: Monochromatic , Bichromatic
Calculation Mode: ABS; Cut-off; Linearity; LogX; LogY
Display: 240*128LCD
Interface: RS232, parallel interface for external printer
Output: External printer (optional)
Power supply: AC220V110V±10%,5060Hz
Dimension: 440(L)mmX305(W)mmX154(H)mm
Net weight: 7kg
