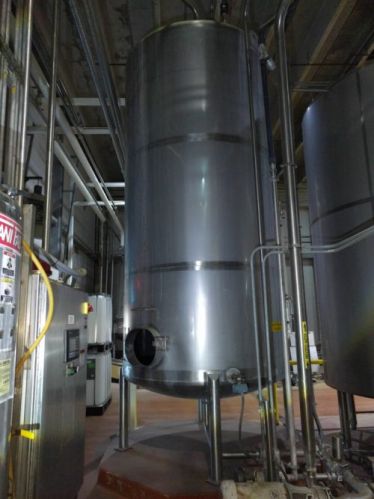

Cherry Burrell Tank SS Single Wall 4000GAL

Cherry Burrell, 4000 Gallon, 304 stainless steel, single wall mixing tank. Vessel Dimensions: 84" diameter x 170" straight wall. Equipped with a dome top, dish bottom, 20" x 16" side manway with bolt down cover, 19" diameter top manway with bolt down cover, (3) Paddle agitation powered by a 2.44.5 hp drive, CIP spray ball supplied by a 2"OD 1½"ID Tri-Clamp fitting and 3½"OD 3"ID seated bevel style bottom discharge with 20" ground clearance. Side Access: (1) 6"OD 2"ID Flange (1) 1" NPT Top Access: (2) 3½"OD 3"ID Tri-Clamp (3) 3½"OD 3"ID Seated Bevel (1) 3"OD Open Vent
