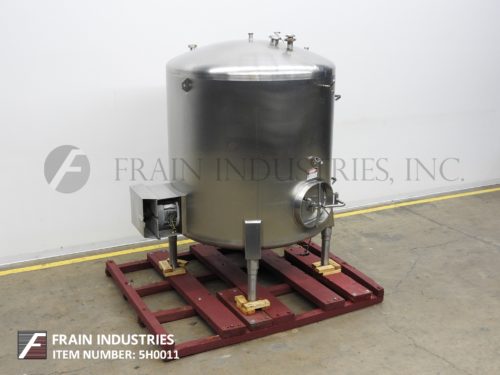

Cherry Burrell Tank SS Single Wall CV

Cherry Burrell, Model CV, 1000 gallon, 304 stainless steel, single wall tank. Vessel Dimensions: 65" diameter x 80" deep with a 64" straight wall. Equipped with dome top, 20" x 16" side entry bolt down man way and bottom side mounted 16" diameter prop agitation powered by a 1½ hp drive. Dish bottom with 2½" OD 2"ID seated bevel style bottom discharge with 11" floor clearance. Mounted on (4) tube legs. Top Access: (2) 2½"OD 2"ID Seated Bevel (2) 2"OD 1½"ID Seated Bevel (1) 3" Open Vent Side Access: (1) 2"OD 1½"ID Tri-clamp
