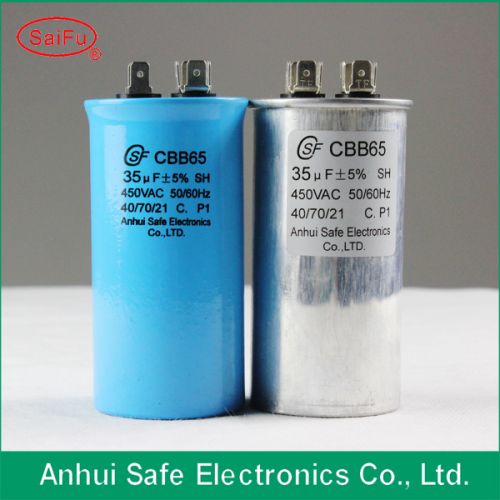

China Capacitor Cbb65 Air Conditioner Capacitor

We are offering china capacitor cbb65 air conditioner capacitor.
Details:
cbb65 feature:
1.the capacitor is low loss,and the anticipated operating life is long.
2.explosion-proof capacitors,so the capacitor is highly safe
3.the cbb65 capacitor is widely used for air conditioner, refrigerators,compressor,etc.
technical data for cbb65:
product type polypropylene film capacitor
capacitance range 3uf~120uf
capacitancetolerance ±5% or according to customers’ requests.
rated voltage 200vac, 250vac, 370vac, 400vac, 440vac ,450vac, 500vac,550vac,600vac ,630vac ,660vac
rated frequency 50hz60hz
operating temperature -40° c~+70° c-40° c~+85° c
class of safety protection p1,p2
testing voltage t-t: 2.0un60s
insulation resistance > =3000s
tangent of loss angle of a capacitor tanσ ≤ 0.0020 (100hz)
life expectancy classb classc
the size information of cbb65
rated voltage(vac)
nominal capacitance(uf)
size(mm)
d
h
200,250,300,370,
400,440,450,500,
600,630,660
3,4,5,7.5,10,12.5,14,17,
20,22.5,25,30,35,40,45,
50,55,60,70,80,100,120
40,45,50,55,
60,63.5
52*32,48.5*71
60,65,70,75,80,
85,90,95,100,
105,110,115,120,
125,135,138.
