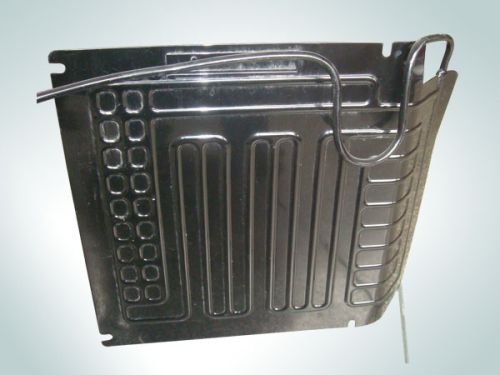

China Fridge Refrigerator Uncoated Roll Bond Evaporator

China fridge refrigerator uncoated roll bond evaporator.
Applications:
the roll bond evaporator is suitable for various domestic & commercial cooling appliance like refrigerator, freezer, exhibit cabinets, show case, watercooler, water dispenser etc. It is to absorb inner heat when refrigerant gasflows in its tube so that inner cabinet of appliance can be cool very soon.
product characteristics:
thermal exchange efficiency compared with its substitutions more than 20%.
Aluminum is 100% recyclable.
The roll bond method allows us to deliver prototypes within a short lead time.
Noisereduction: by adapting the channel pattern it can reduce noise of up to 5%.
Corrosion:its surface plastic powder coating and aluminum prevents corrosion.
Innercleanness meet the non-cfs demand and compatible to r134a, r600a & r400a
raw material:
aluminum sheet: al1050, al 1060, al1070
al sheet thickness: 1.4 ~ 2.5mm by rolling to requested thickness
al-cu tube, capillary tube
aluminum sheet: evaporator thickness: 1.2 ~ 1.5mm, normally with thickness1.2mm.
roll bond evaporator structure & size:
structure: single side inflated or two sides inflated
shape: flat, u-shape, c-shape-shape, box shape, round shape
size: width 650mm (max), length 1850mm (max).
