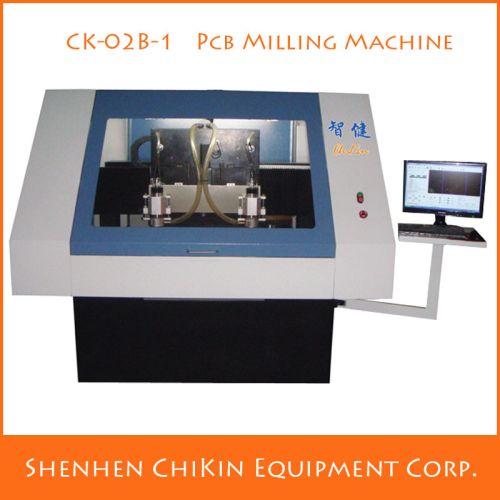

China High Performance PCB Milling Machine CNC Automation Machine

₹ 11.77 Lakh / 17000 17000 Set

MOQ1 Set(s)
MaterialGranite Marble
ConditionNew
UsageAll kinds of PCB and aluminum plate drilling and routing
Total Carbohydrate12 months
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

ConditionNew
Total Carbohydrate12 months
MaterialGranite Marble
Number Of FlowerPCB milling machine
UsageAll kinds of PCB and aluminum plate drilling and routing
Weight2200KG

We are offering china high performance pcb milling machine cnc automation machine.
Spindle number, 2
spindle model, ck-02b-1
nc system, chikin cnc
drive system, servo
spindle type, water-cooled
operating interface, chinese interface
positioning accuracy, ± 0.01mm
molding precision, ±0.05mm
dilling diameter, 0.6-6.0mm
milling diameter, 0.6-3.175mm
size of the work, 560*680mm
size of the machine, 2100*1850*1700mm
air supply, none
tool magazine capacity, none
radius,knife,cuttingknife datection, none
working powe,r 220v 50hz
xyz rail, taiwan
x.y.z ballscrew, taiwan
x y axis displacement speed, 15mmin
z axis displacement speed, 15-30mmin.

Additional Information

Payment Terms L/C, T/TWestern Union
Port of DispatchYANTIAN / SHEKOU / CHIWAN PORT
Packaging DetailsStandard Solid wooden cases Or according to customers' requirements
Delivery Time15-30 days after 30% deposit
