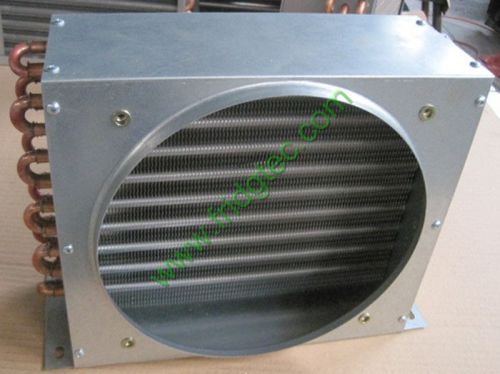

China Refrigeration Display Cabinet Copper Tube Condeser Cooling Coil

We offer china refrigeration display cabinet copper tube condeser cooling coil.
China refrigeration display cabinet copper tube condeser cooling coil on sales
typical benefits:
- well distributed liquid dispensing of windwardarea of evaporator or condenser coil
- high quality mechanical expanding orsuper high pressing hydraulic expanding between copper tube and fins, tightcontacting and optimized heat exchanging.
- free pitch distance selection, reducethe frost affection in low temperature
- with single or double reverse-flow system, small water resistance, good heat exchanging- with super high temperature vacuum drying, ensure inner without impurity orwater substance.
application:
suitable for r134a, r22, r404a, r407c, co2 refrigerant and so on
widely used for commercial refrigerators, commercial freezer, air-conditioningsystems ,show case cabinet, dehumidifier, ice maker etc…
material:
material: copper tube, aluminum fins, galvanized steel bracket
- copper tube: o.d.7mm, o.d.9.52mm, o.d.10mm, or other size by request, innerthread groove or smooth tube
- aluminum foil: hydrophilic or uncoated bare
- fin type: louver, flat, corrugated or slit fin
- side plate: galvanized steel plate
voltage:220v150hz and 380v350hz or other type.
Size: from 14hp to 10hp
different alternative condensing fans available: shaded pole or axial fanmotor.
producing procedure: tube bending, punching fin, tube expanding, fins installation,drying, welding, leakage test, tube bending, quality inspection, packing
tightness testing: gas testing under 3.0mpa air pressure
