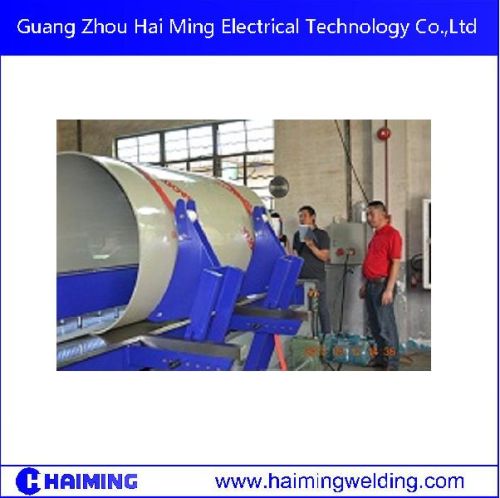

Chinese Automatic Plastic Sheet Welding Machine -- S-PH3000A-C-J

HaiMing--Chinese automatic plastic sheet welding machine for sale
S-PH3000A-J-C Plastic butt welder
Features:
1. S-PH3000A- J-C can be operated horizontally , circular and vertically, which allows to perform different types of weld (horizontal, circular and vertical joints). The machine is equipped with a control panel, which allows easily and safely setting and performance of the whole welding process.Otherwise according to the user�s needs, it is also possible to input the type of material and the dimension of the thermoplastic sheet, and therefore proceed to weld. Each welding cycle is automatically memorized
2. Welding types: horizontal, 90 degrees (on request), circular (on request),S-PH3000A- J-C is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF�.
3. The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
4. Control system Siemens PLC, 7-inch color touch screen.
5. Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
6. 3mm-40mm welding capabilities, special welding thickness of up to 60mm.
Range of Application:
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics
