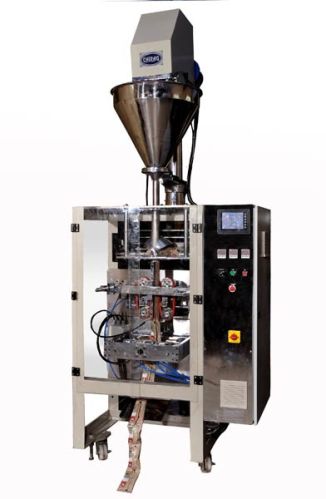

Contact SupplierWe are offering automatic vertical pouch packaging machine for powders.
the chirag electronics series ch-100 is ideal bagger with servo operated auger filler to pack various products at high speed. It is suitable to pack instant coffee powder, spices, milk powder, glucose powder, protein powder etc.
filling range: 500gm to 2000gm/ 2000gm to 5000gm.
features:
controlled by plc with color touch screen.
ac servo drive in auger filling/ac inverter drive for pulling paper.
self diagnostic features.
easy loading of film roll.
no product no fill to ensure no wastage of bags.
safety doors interlocked.
password protection.
fault history.
technical specification:
bag width: 60 to 225mm
out put: 25 t0 30 bags/min.
max. Roll dia: 480mm
bag type : center seal
supply voltage: 415v, 3phase, 50 hz
power requirement: 5.5kw
air requirement: 6kg/cm2
machine weight: 1500kg.
machine dimension: 7' * 4' * 9'.
