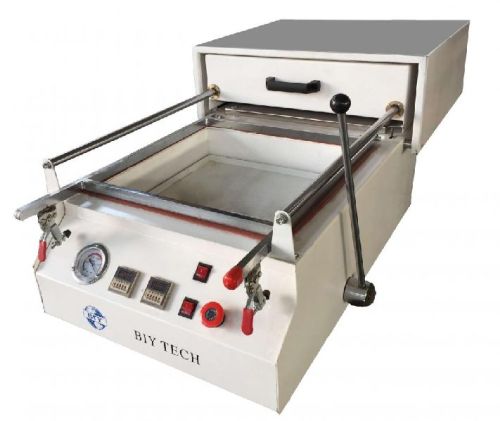

Chocolates and Cake Vacuum Forming Machine

Chocolates &cake tray vacuum forming machine can make the special designs on the chocolate and cakes. vacuum forming is also appropriate for transparent materials such as acrylic, which are widely used in applications for aerospace such as passenger cabin window canopies for military fixed wing aircraft and compartments for rotary wing aircraft. Vacuum forming is often used in low-level technology classes for an easy way to mold. 1. Vacuum material:  material max thickness(mm)/(in) 1.acrylic sheets(pmma) 1.2-5mm/3/64-13/64" 2. Abs 1.0-6mm/3/64-15/64" 3.  pvc 1.0-5mm/3/64-13/64" 4 .  pet 0.5-5mm/1/64-13/64" 5.  poly styrene 0.5-5mm/1/64-13/64" 6.  kydex 1.2-5mm/3/64-13/64" 7.  poly propylene 1.2-5mm/3/64-13/64" 8.  other plastic 1.2-5mm/3/64-13/64" 2. Working principle:carry materials by hand → clamp the materials → move the material into the oven, after the material to soft →take the material to forming area → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.3. Basic units:    1). Heater adopts infrared ray heating system.       2). Heater drives by cylinder to insure heater work fleetly and placidly.       3). The equipment with the safety and protection equipment.       4). Clamp unit, controlled by pneumatic solenoid valve. Clamping unit assembled synchronous unit for material.
