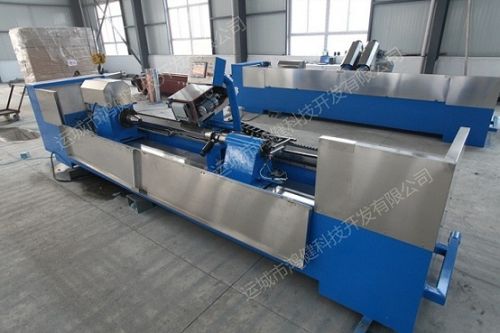

HJ-CDJ is a new generation of CNC lathe developed for plate-making industry. The machine uses four axis servo control system, the integration of casting lathe bed with rectangular guide way, guarantying the enough strength, stiffness and good shock resistance。The machine structure is compact.
FEATURES:
1. The spindle drive system adopts frequency control of motor speed, it automatically adjusts spindle speed within the scope of 120-700 rmin according to the diameter of work piece size
2. The tailstock adopts simple and reliable air clamper device
3. It is high efficiency. One time clamping can finish the processing of the inner hole and outer circle of the work piece.
4. Simple operations and pleasant interface
CAPABILITY:
Workpiece OD：￠90-320mm
Workpiere ID：￠50-100mm
Workpiece bore pitch ：0-90°
Workpiece thickness ：60mm
The Knife largest trip
The Outside Knife largest trip of horizontal： 160 mm
The Outside Knife largest trip of vertical： 220mm
The Inside Knife largest trip of horizontal： 220 mm
The Inside Knife largest trip of vertical： 220mm
The Other parameters of machine
the top taper of hole ahead the main axis： 莫氏6号
Spindle speed range ： 120—700rmin
No level machinery velocity modulation
Tailstock
The Diameter of the Set tube for the top taper： 70 mm
The largest trip of the Set tube for the top taper ： 125mm
the top taper ： 莫氏5号
Transmission set
Main Motor rated power： 12.5KW
Main Motor speed： 960 rmin
The transmission ratio Rope Wheel： 2.1：1
Machine weight and appearance size
Machine weight： 2800Kg
Machine appearance size： 2000*1800*1600 mm
