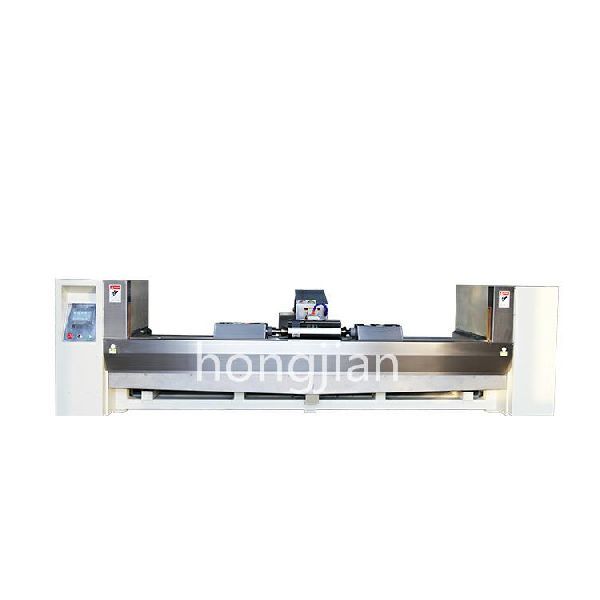

Chrome Polishing For Gravure Cylinder Chrome Surface Finishing Machine Sand Belt Rotogravure Chrome Polisher

Chrome polishing machine is designed for polishing process on chrome layer of the gravure cylinders to achieve the smoothness and brightness of the net grains. It is PLC controlled with touchable screen via frequency convertors and contactors either manually or automatically. When automatically operation it can avoid artificial failure and guarantee production stability and products' quality.

Main Technical Parameters:

Cylinder Diameter: Φ90-350mm

Cylinder Length: 300-1400mm

Cylinder rotation speed: 50-350rpm

Polishing head to-and-fro-speed: 400-700mm/min

Polishing head forward speed: 350-400mm/min

Main shaft rotation speed: 20-80rpm

Polishing head oscillation frequency: 10-35hz

Tailstock movement speed: 1100-1200mm/min

Customer Responsibility: 380/440V AC,3 Phase; Air compressor

The parameters can be adjusted as customer requires

FEATURES:

1. Easy operation

Centralized operation panel, pressure display, roller rotating speed display, polishing head reciprocal times display. Operator can set up and regulate parameter.

2. Effectual polishing

To meet the challenge of different technical vibration, polishing head adopts constant torque electron electrode less variable-speed, pneumatic control, cylinder push, panel governor valve regulate. High accuracy spindle and bearing ensure stationary spindle rotation, high rotary precision, frequency conversion electrode less variable-speed.

3. Save shaft material

Tape feed motor adopts constant torque electrode less variable-speed motor and reduction ratio motor, ensure polishing belt speed can inherent regulation between 2mm/min to 30mm/min.

4. High automatic complete appliance

complete appliance adopts Mitsubishi PLC control, to achieve complete appliance automatic control. Transducer adopts Fuji transducer, increase the service life of complete appliance.
