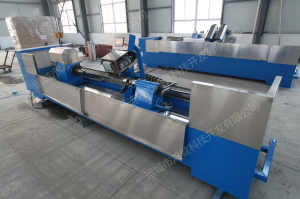

Chrome Polishing Machine

We are offering chrome polishing machine.
Product:
hj-pgj chrome polishing machine is the new full automatic numerical control model that developed by the rich experiences of designers. Their features are rigorous structure, stable, high efficiency, easy operation, etc.
Feature:
1.easy operation
centralized operation panel, pressure display, roller rotating speed display, polishing head reciprocal times display. Operator can set up and regulate parameter.
2 .effectual polishing
to meet the challenge of different technical vibration,polishing head adopts constant torque electron electrodeless variable-speed, pneumatic control, cylinder push, panel governor valve regulate. High accuracy spindle and bearing ensure stationary spindle rotation, high rotary precision, frequency conversion electrodeless variable-speed.
3. Save shaft material
tape feed motor adopts constant torque electrodeless variable-speed motor and reduction ratio motor, ensure polishing belt speed can inherent regulation between 2mmmin to 30mmmin.
4. High automatic complete appliance
complete appliance adopts mitsubishi plc control, to achieve complete appliance automatic control. Transducer adopts fuji transducer, increase the service life of complete appliance.
technical parameters：
polishing roll length 420-1300mm( length specifications can book )
polishing roller diameter φ100-400mm( special specifications can be booking）
roll speed 100-400 revolutions per minute
the moving speed of polishing head 600-2800mm minute
machine power 5kw
outline dimensions 3.5*1.5*1.1m
weight tons of2
user owned 380440vthe three-phase ac power supply, a source of compressed air
plz kindly advise:
1. the size (length*diameter*circumference ) of the cylinder.
2. related consumables and spare parts needed.( abrasive belt)
look forward to your inquiry!!!
