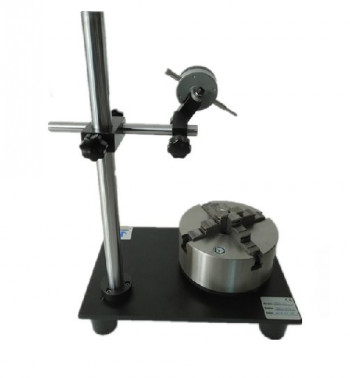

Circle Runout Tester Perpendicularity Tester

Circle runout tester perpendicularity testermeasures the coaxial deviation of ampoule bottle and penicillin bottle. It is essential model for pharmaceutical companies and testing institutions. It's based on ybb00192003.
circle runout tester perpendicularity tester principle
the bottle is fixed on a rotating plate and the bottle mouth is contacting with dial gauge. Record the maximum and minimum reading after rotating a full circle of 360 °. The 12 of the difference between the two is the vertical axis deviation value.
Technical data
sample diameter: 5mm-80mm
test range: 0-12.7mm
division value: 0.001mm
measurable height: 15mm-150mm
dimension: 330mm(l)*220mm(w)*230mm(h)
weight: 12kg
standard
ybb00332002, ybb00192003, gb 8452, gb 2639
