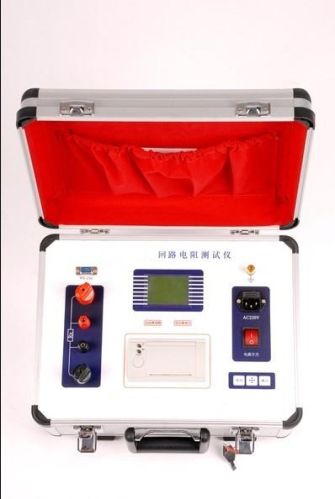

Circuit Breaker Contact Resistance Tester

We are offering Circuit Breaker Contact Resistance Tester.
I---Application
GDHL Series contact resistance tester is applied in circuit breaker testing and power cable connection quality inspection.
The max test current of contact resistance tester could be reached 600A.
All the test results could be saved in tester or printed by micro printer.
II---Technique index:
Test current: 100A200A400A600A DC2 Max voltage output: 5V
Test standard: IEC62271
Measurement range: 0~1999.9uohm Resolution: 0.1uohm
Accuracy: 0.5%RDG+0.2uohm
Display mode: LCD
Max memory size: 100 groups of test data
Power output mode: succession
Rated power supply: AC220V ± 10%, 50Hz60Hz
Environment temperature: 0-50°C
Humidity: ≤85%RH
Size: 340mm × 280mm × 210mm
Weight: 7 kg
