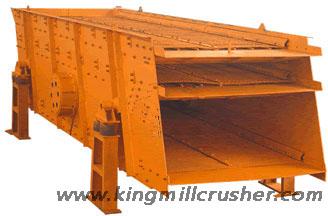

Circular Vibrating Screen

1. Description of Circular vibrating screen:
The Circular vibrating screen is is a kind of effective vibrating screen with multi-layers. Our circular vibrating screen employs cylindrical eccentric shaft vibration exciter and partial block to help to adjust amplitude. It has the follow charactert:
1. This circular vibrating screen adopts eccentric block to generate powerful excitation.
2. High strength bolts are adopted on the beam and box of the sieve. It is simple in structure and easy to maintain.
3. It adopts tire coupler, which is flexibly connected and offers smooth operation.
4. This circular vibrating screen is of small swing, high efficiency and large inclination, which provides it with features like high screening efficiency, large working capability, long service life, low energy consumption and low noise.
2. Benefits & Advantages Of Circular vibrating screen:
Circular vibrating screen has reliable structure, powerful exciter, high screening efficiency, low noise, simple maintenance, durable frame, strong exciter, and safe operation, big capacity, and it is easy adjust ,
3. Application of Circular vibrating screen:
Circular Vibrating Screen is widely used for separating the stuff. The circular vibrating screens work on circular motion. The vibrating screens are mainly used in coal dressing, metallurgy, mine, power station, water conservancy project , building industry, light industry and chemical industry etc They are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc .
4. Working Principle of Circular vibrating screen:
Circular Vibrating Screen adjusts the amplitude by tube-shaped violent vibration screen of eccentricshaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.
It has multi-layers and is of high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line.
5. Composition-structure of Circular vibrating screen:
Circular Vibrating Screen is compiled of mainframe, eccentric bock, screen web, rub spring, electric motor, coupler and some more.
6. Technical Parameters Of Hengxing Jaw Crusher:
Model Screen area Screen size (mm) Mine density (mm) Capacity (t/h) Power(kw) Weight(kg)
2YK1235 2 5-120 ≤400 60-120 5.5 3600
2YK1545 2 5-150 ≤400 110-360 15 6400
3YK1545 3 5-150 ≤400 110-360 15 5800
3YK1548 3 5-150 ≤400 120-385 15 6600
4YK1548 4 5-150 ≤400 120-385 15 720
2YK1854 2 5-200 ≤400 200-450 18.5 8150
3YK1854 3 5-200 ≤400 200-450 18.5 8850
4YK1854 4 5-200 ≤400 250-600 18.5 9550
3YK1860 3 5-200 ≤400 250-600 22 9100
4YK1860 4 5-200 ≤400 300-750 22 9800
3YK2060 3 6-200 ≤400 300-750 37 10800
4YK2060 4 6-200 ≤400 400-850 37 11800
3YK2460 3 6-200 ≤400 400-850 45 16600
4YK2460 4 6-200 ≤400 400-850 45 17000
