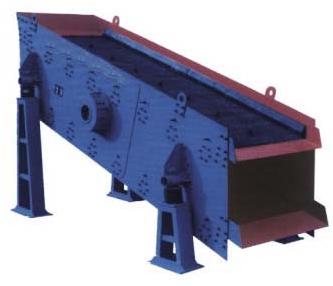

Circular Vibrating Screen

We offer circular vibrating screen.
yk series circular vibrating screen adopting german technology is a kind of high-efficiency vibrating screen.this series circular vibration screen is of circular movement and designed for screening the ashlars in the stone pit.and it can also be used for classification in the coal selecting, ore selecting,building materials,electrical and chemical fields.
features：
1. Higher cxcitation force-the machine converts the eccentric force of the blocks to the source of excitation force.
2. Simple construction,convenient maintenance-crossbeam and screen box are connected with high strength screw or high streng the welding.
3. Flexible connection, run steadily with tire coupling.
4. Small amplitude,high-frequency,high inclination-angle structure,high efficient sieving,higher capacity,longer longevity,energy-saving,less noise.
main technical parameters:
model:2yk1545 layer:2 area(㎡):6.75 size(mm):5-50
max feed(mm):400 capacity（m³/h):44-258
vibrating power(r/min):970 double flaps: 8
motor power(kw): 15 weight(kg):4830 cape: 20°
sieve specification(mm):1500*4500.
