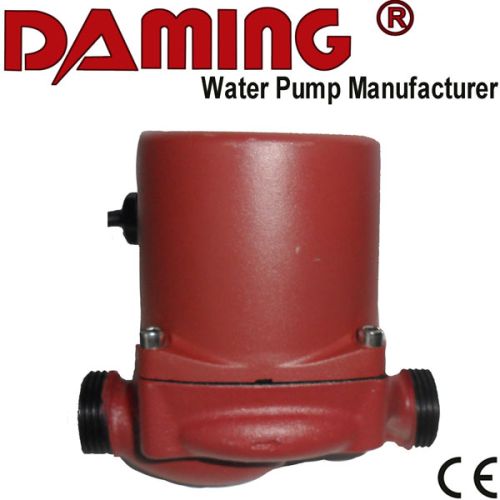

Contact SupplierWe are offering circulating pump.
rscirculation pump,water pump,sheild pump
1)power: 90w
2)pump head:6m
3)pump flow:50l/m3
4) 1 year warranty,ce
application and installation
the pump can be used to delivery soft water, thin, clean, non-corrosive, non-explosive liquids without solid granules, fibre and mineral oil for circulation pipeline, water-heat system and obturation - patterned industrial circulation system.
the pumps shall be installed in enclosed places, or at least protected against inclement weather.
structure feature
pump body: cast iron
motor bracket: aluminum
impeller: pp
motor shaft: ceramic
sealed part: shielding can
electric motor: single-phase 220v - 50hz with capacitor and thermal overload protector. Voltage fluctuation for 10% more or less is allowed and other voltage for 60hz is also available.
suitable fluids
heating water to vd12035
heating water
water /glycol mixtures max.mixing ratio 1:1
performance
fluid temperature range -10°c--+110°c
max.working pressure 10bar
ambient temperature
permissible up to 40°c
motor
degree of protection ip44
insulation class f
