Cisco Compatible SFP Optical Transceivers, Brand Name : ETU

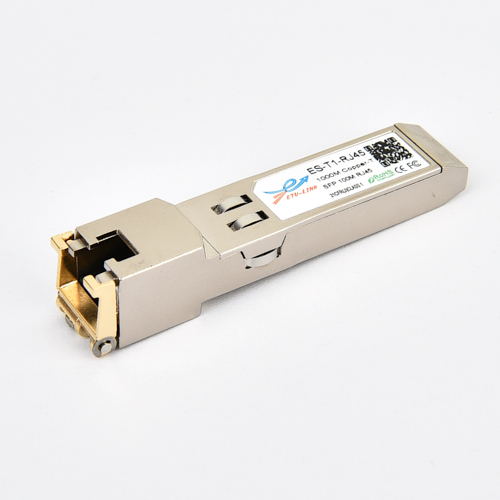

Glc-t sfp rj45 1000base-t cisco compatible copper sfp optical transceiver module
specification
data rate: 1000m only
type: copper
distance: 100m
connector: rj45
ddm: yes
place of origin: made in china
port:shenzhen
features
1.up to 1.25gbs bi-directional data links
2.hot-pluggable sfp footprint
3.tx disable and rx loswithout los function
4.fully metallic enclosure for low emi
5.low power dissipation (1.05 w typical)
6.compact rj-45 connector assembly
7.access to physical layer ic via 2-wire serial bus
8.1000 base-t operation in host systems with serdes interface
working temperature: commercial: 0°c to +70°c;industrial:-40°c to +85°c
optical module used in ethernet, sdh, sonet,can be compatible with cisco 2900 series,cisco 4000 series, cisco 5000 series,huawei, the pole into, d-link, zte, hp, juniper and other equipment.
Package type: individual package or 10pcpackage
10g sfp+ optical transceiver
etu model cisco model product description
esp8592-3lcd03 sfp-10g-sr 10g sfp+ sr mm 850nm 300m lc connector with ddm
esp3192-3lcd02 sfp-10g-lrm 10g sfp+ lr mm 1310nm 220m lc connector with ddm
esp3192-3lcd10 sfp-10g-lr 10g sfp+ lr sm 1310nm 10km lc connector with ddm
esp5592-3lcd40 sfp-10g-er 10g sfp+ er sm 1550nm 40km lc connector with ddm
esp5592-3lcd80 sfp-10g-zr 10g sfp+ zr sm 1550nm 80km lc connector with ddm
sfp optical transceiver
etu model cisco model product description
es8512-3lcd05 glc-sx-mm 1.25g sfp mm 850nm 550m lc connector with ddm
