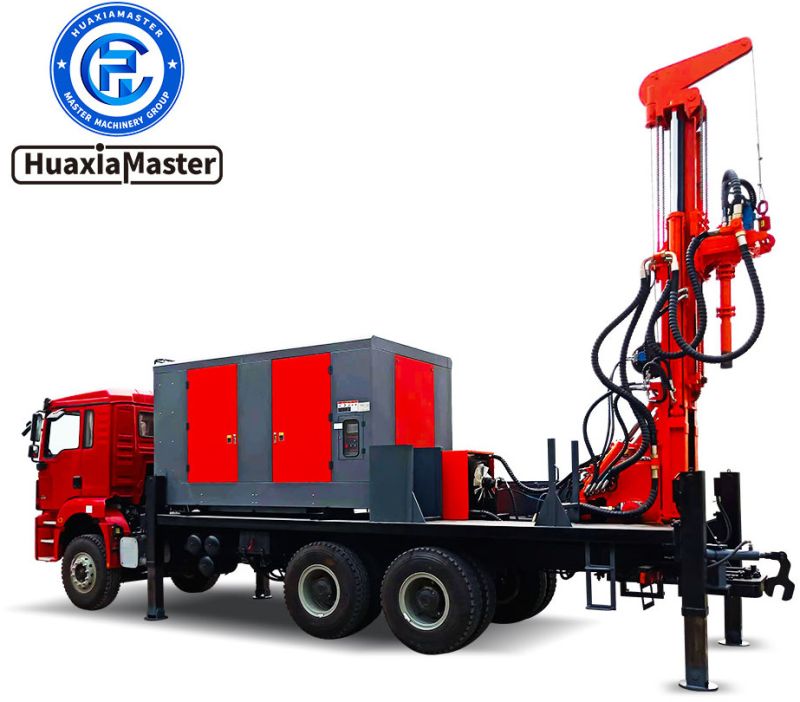

CJC Series Truck-mounted Pneumatic Water Well Drilling Rig

₹ 8.90 Cr / pieces

Brand NameHUAXIAMASTER
Model NumberCJC-300 CJC-350 CJC-450 CJC-500 CJC-600 CJC-700
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

1、Introduction to CJC Series Truck-mounted Pneumatic Water Well Drilling Rig CJC truck mounted pneumatic water well drilling rig is a kind of pneumatic water well drilling rig jointly developed....

Product Details

1、Introduction to CJC Series Truck-mounted Pneumatic Water Well Drilling Rig

CJC truck mounted pneumatic water well drilling rig is a kind of pneumatic water well drilling rig jointly developed by HUAXIAMASTER GROUP and Jining Master Machinery Research Institute. It is mainly used for drilling in Hilly and mountainous areas with many rocks. It has the advantages of large diameter, deep drilling, fast footage, flexible movement and high efficiency. It has been widely used in industrial and civil drilling, geothermal drilling and environmental monitoring drilling Well and other occasions.

2、Features Of CJC Series Truck-mounted Pneumatic Water Well Drilling Rig

2.1 Using the principle of pneumatic impact, the drilling footage is fast and the drilling efficiency is high.

2.2 It adopts truck chassis, reasonable and compact layout and easy operation.

2.3 Equipped with hydraulic outrigger, it is used for leveling the drilling rig and maintaining the stability of the fuselage.

2.4 The main engine is equipped with high-power diesel engine, which has strong power and can meet the needs of work

2.5 Equipped with hydraulic take-off and landing composite boom to save space and provide strong lifting force for deep hole operation.

2.6 The drilling rig is equipped with hydraulic feeding system, dual hydraulic motor power head, chain drive and hydraulic cylinder propulsion, with large torque and high drilling efficiency.

2.7 The configuration of hydraulic wrench, can quickly disassemble the drill pipe, saving time and effort.

2.8 The operation handle is centralized, the layout is reasonable, safe and feasible

2.9 Excellent workmanship, durable and low maintenance cost.

3、Parameters of CJC Series Truck-mounted Pneumatic Water Well Drilling Rig

Model	CJC-300	CJC-350	CJC-450	CJC-500	CJC-600	CJC-700
Borehole diameter	140-325mm	140-325mm	140-350mm	140-350mm	140-350mm	140-400mm
Drilling depth	300m	350m	450m	500m	600m	700m
Drill pipe diameter	76/89/102mm	89/102mm	89/102/108mm	102/108/114mm	102/108/114mm	102/108/114mm
Drill pipe length	1.5/2.0/3.0/6.0m	1.5/2.0/3.0/6.0m	1.5/2.0/3.0/6.0m	1.5/2.0/3.0/6.0m	1.5/2.0/3.0/6.0m	1.5/2.0/3.0/6.0m
One time propulsion length	6600mm	6600mm	6600mm	6600mm	6600mm	6600mm
Main engine power	85kW	91kW	103kW	118kW	132kW	153kW
Propulsion	8T	8T	18T	18T	23T	23T
Lifting power	18T	22T	25T	26T	30T	30T
Working pressure	1.7-3.0Mpa	1.7-3.4Mpa	1.7-3.5Mpa	1.7-3.5Mpa	1.7-3.5Mpa	1.7-3.5Mpa
Air consumption	17-36m³/min	17-36m³/min	17-36m³/min	17-42m³/min	17-42m³/min	17-42m³/min
Walking speed	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h
Climbing ability	30°Max	30°Max	30°Max	30°Max	30°Max	30°Max
Rotation speed	40-70rpm	66-135rpm	50-135rpm	40-130rpm	45-140rpm	45-140rpm
回转扭矩	5700-7500牛米	6200-8500牛米	7000-9500牛米	7500-10000牛米	8500-11000牛米	8850-13150 牛米
底盘	卡车底盘
