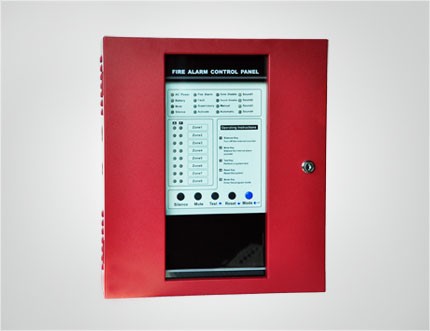

CK1016 16 Zones Conventional Fire Alarm Control Panel

General description
the ck1000 series conventional fire alarm control panel is a 24 volt, four to sixteen-zone, class b, conventional fire alarm control panel. Designed exclusively to meet the latest market requirements and future ulc codes, the highly cost-effective ck1000 series can be used in a variety of low- to mid-sized applications.
Features
1. Four, eight, sixteen zone style b (class b)initiating device circuits (idcs), all zones accept two-wire smoke detectors and any normally-open contact devices.
2. Two supervisory input with dc12v output, ideal to connect security alarm devices.
3. Three general alarm, trouble and supervisory,form a relay output.
4. One, two, four built-in sound output, style y (class b) notification appliance (signal) circuits (nacs), nacs may be programmed: silenceable or non-silenceable.
5. 3.0 amps of total system power. Resettable dc24v & non-resettable dc24v output.
6. Zone input short circuit can be set to “alarm”or “ fault” mode.
7. Rs485 communication port (optional).
8. Automaticmanual mode can be programmed.
9. Disableenable control per zone (idc) can be programmed.
10. Disableenable sound output(nacs) can be programmed.
Technical specifications
1. Ac power: 220vac, 50 hz.
2. Battery: sealed lead-acid batteries only. Maximum charging circuit: 27.6vdc @ 0.8 amp for normal flat charge. Maximum battery charger capacity: 18ah battery.
3. Note: two 10ah batteries can be housed in the cabinet. Larger batteries require a separate battery box.
4. Total dc24v system power: 3.0 amps.
5. Maximum current per nac: 1.25 amps.
6. Maximum battery charging capability: 18 ah.
7. Resettable four-wire smoke detector power output.
8. Non-resettable power output.
9. Integral form-a alarm, trouble and supervisory relays, rated at: 2.0 amps @30 vdc (resistive), 2.0 amps @ 30 vac (resistive).
