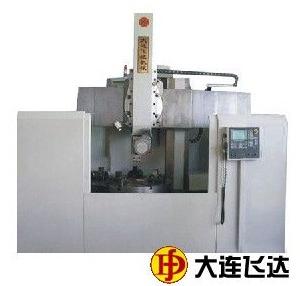

Ck5112 CNC Single Column Vertical Lathe

We are offering ck5112 cnc single column vertical lathe.
This machine can carry out the following operations on the materials of ferrous metal,nonferrous metal and part non-metal int.and ext.cylinder turning,taping,curving,or inch and kinds of complex swiveling curve can be carried out on the machine.
technical specification of ck5112
max.turning diameter (mm) 1250
table diameter (mm) 1000
max.working height of workpiece(mm) 1000/1200
max.weight of workpiece (t) 4
speed -step of table: four gears stepless
travel of railhead horizon(mm) -20--700
travel of railhead vertical(mm) electrical turret 650,ram 700
power of main motor(kw) 22
speed range of table (r/min) 3.2--200
weight of machine(about ) 8--9t
overall dimensions(lxwxh) (mm) 2780x2540x3500(3700)
more cnc vertical lathe model and detailed parameters please see website:
http://www.cn-lathes.com
