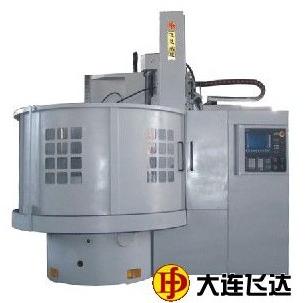

Ck5116 CNC Single Column Vertical Lathe

We are offering ck5116 cnc single column vertical lathe.
this machine can carry out the following operations on the materials of ferrous metal,nonferrous metal and part non-metal int.and ext.cylinder turning,taping,curving,or inch and kinds of complex swiveling curve can be carried out on the machine.
technical specification of ck5116
max.turning diameter (mm) 1600
table diameter (mm) 1400
max.working height of workpiece (mm) (1)working height of standard model:1000mm
(2)working height of increasing 200mm:1200mm
(3)working height of increasing 400mm:1400mm
(4)working height of increasing 600mm:1600mm
max.weight of workpiece (t) 5
speed -step of table : four gears stepless
travel of railhead horizon(mm) -20--915
travel of railhead vertical(mm) electrical turret 800,ram 1000
power of main motor(kw) 30
speed range of table (r/min) 2.5--160
weight of machine(about t) 12.5--15
overall dimensions(lxwxh) (1)standard model 2930x2670x3500
increasing 200mm 2930x2670x3700
increasing 400mm 2930x2670x3900
(3)increasing 600mm 2930x2670x4100
more cnc vertical lathe model and detailed parameters please see website:
http://www.cn-lathes.com
