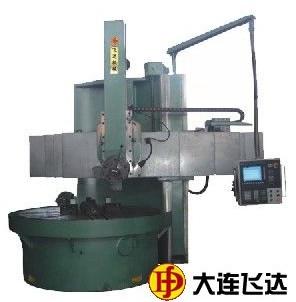

Ck5123 CNC Single Column Vertical Lathe Machine

We manufacture Ck5123 Cnc Single Column Vertical Lathe Machine. This series cnc single column vertical lathe machine adopts advanced technology, advanced cad design method, good static and dynamic rigidity to sure of operation safety, long service and good efficiency. This machine can carry out the following operations on the materials of ferrous metal, nonferrous metal and part non-metal interior and interior cylinder turning, taping, curving or inch and kinds of complex swiveling curve can be carried out on the machine.
technical specification of ck5123
max.turning diameter (mm) 2300
table diameter (mm) 2000
max.working height of workpiece (mm) (1)working height of standard model:1350mm
(2)working height of increasing 250mm:1600mm
(3)working height of increasing 450mm:1800mm
max.weight of workpiece (t) 8
speed -step of table: four gears stepless
max.travel of crossbeam (mm) 1000/1250/1450
travel of railhead horizontal(mm) -20--1150
travel of railhead vertical(mm) 1000/1250/1450
power of main motor(kw) 37
speed range of table (r/min) 2.5--100
weight of machine(about t) 17.5
overall dimensions(lxwxh) (1)standard model 3210x2850x3300
(2)increasing 250mm 3210x2850x3550
(3)increasing 450mm 3210x2850x3750
