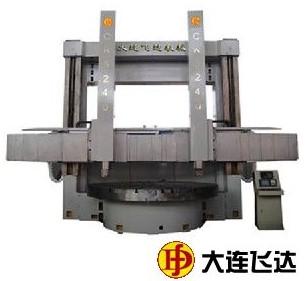

Ck5240 CNC Double Column Vertical Lathe Machine

We manufacture Ck5240 Cnc Double Column Vertical Lathe Machine. This series cnc double column vertical lathe machine adopts advanced technology, advanced cad design method, good static and dynamic rigidity to sure of operation safety, long service and good efficiency. This machine can carry out the following operations on the materials of ferrous metal, nonferrous metal and part non-metal interior and exterior cylinder turning, taping, curving or inch and kinds of complex swiveling curve can be carried out on the machine.
technical specification of ck5240
max.turning diameter (mm) 4000
table diameter (mm) 2830/3200
max.working height of workpiece (mm) (1)working height of standard model:1600mm
(2)working height of increasing 400mm:2000mm
(3)working height of increasing 900mm:2500mm
max.weight of workpiece (t) 10/20/32
speed -step of table: four gears stepless
max.travel of crossbeam (mm) 1250/1650/2150
travel of railhead horizon(mm) 2150
travel of railhead vertical(mm) 1000/1300/1500
power of main motor(kw) dc 55
speed range of table (r/min) 2--63
weight of machine(about t) 38--45
overall dimensions(lxwxh) (1)standard model 8010x4400x4680
(2)increasing 400mm 8010x4400x5080
(3)increasing 900mm 8010x4400x5600
