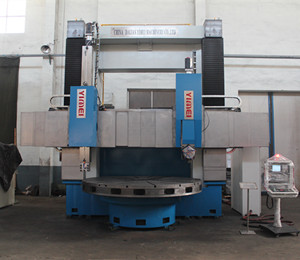

Ck5250 CNC Heavy Duty Lathe Machine

We offer ck5250 cnc heavy duty lathe machine.
(ck5240ck5250ck5263ck5280)
term unit ck5240 ck5250 ck5263 ck5280
max. Turning diameter mm 4000 5000 6300 8000
worktable diameter mm 3600 40004500 450050005700 60007200
max. Height of work piece mm 250031504000 250031504000 31504000 40004500
max. Weight of workpiece t 3250 3250 50100150 150250
max. Cutting force of right tool post kn 50 50 5080120 120
max. Cutting force of left tool post kn 40 40 4070100 100
max. Total cutting force kn 90 90 150 220
max. Torque of worktable kn 100 100 100150250 200400
stage number of variable speed of worktable two gears
variable speed range of worktable rmin 0.5-63 0.5-50 0.5-40 0.2-200.1-16
feeding stage number av servo stepless
feeding range mmmin 0.1-2000 0.1-2000 0.1-2000 0.1-2000
horizontal travel of tool post mm 2200 2800 3450 4350
vertical travel of tool post mm 125016002000 125016002000 16002000 160020002500
crossbeam moving speed mmmin 380 380 380 380
tool post rapid moving speed mmmin 4000 4000 4000 4000
max. Swivel angle of worktable 。 -30 -30 +30 +30
positioning accuracy mm 0.03 0.03 0.03 0.03
repeatability positioning accuracy mm 0.015 0.015 0.015 0.015
machining accuracy
it7
main electric motor power
kw dc75 dc75 dc90110 dc110132
overall size mm 5840*5040*4380 6715*11620*8520 8100*13080*8520 1000*15000*8925
weight of worktable t 9296 108115 118127178 270.
