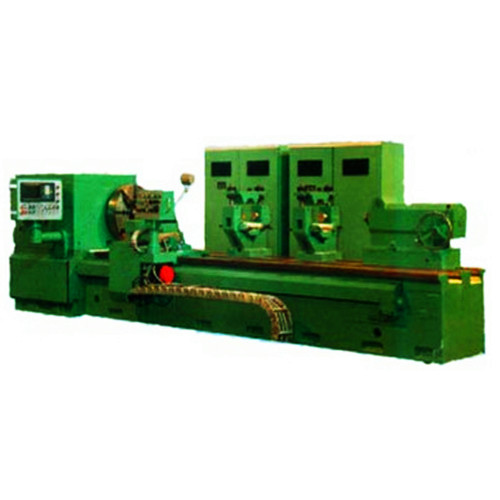

CK8450 Roll Turning Lathe Machine

Product name : Roll turning lathe machine Oil Country Lathes CK8450
Application fields of Roll turning lathe
Roll Turning Lathe Machines can also be used to repair roll pass. Common type roll lathe is mainly used for roll cylindrical surface roughing, semi-finishing, finishing, cutting, etc., it can also be used to process the shaft parts.
Roll turning lathe model:
CK8450 CK8463 CK8463 CK8480 CK84100 CK84125 CK84160
Technical specification of Roll turning lathe machine CK8450
1 Maximum turning diameter of workpiece 200-500 mm
2 Maximum length of workpiece 253040 dm
3 Maximum weight of workpiece 4 t
4 Height of center 300 mm
5 Diameter of faceplate 500 mm
6 Maximum torque of faceplate 5 KN.m
7 Range of spindle speeds 2-160 rmin
8 Maximum cutting force of carriage 20 KN
9 Range of feed rates ( long) 1-4000 mmmin
10 Range of feed rates(Transverse) 1-4000 mmmin
11 Travel of tailstock quill 150 mm
12 Dimensions of mode steady supporting 180-260 mm
13 Power of main motor 15 KW
14 Machine weight(Approx) 8 t
15 Overall dimensions(L×W×H) 605×164×152 cm
