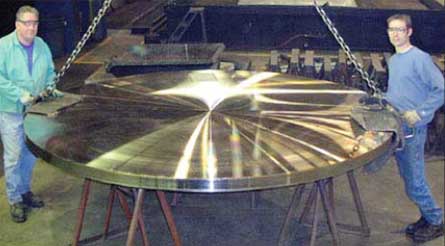

Clad Metal Plate - 03

We provide a gamut of superlative Clad Metal Plates that is made into various shapes and products for many industries. We have an in-house facility that uses modern technology to produce high grade Clad Metal Plates, used by many industries for different applications.

• M/S. NEON ALLOYS manufactures clad plate which is explosion welded.
• Since the 1960s, we have made use of this technology and expanded it.
• In 1999, we built a new clad manufacturing plant, doubling the production capacity by 2006.
• A highly sophisticated explosion cladding facility is housed in the factory, which is one of its kind in the world, with no alternatives
• We undertake all the manufacturing and testing stages in-house on new, completely mechanized equipment
• High material throughput, plates of all sizes and wide and heavy plate capacity are supported by large bridge cranes

• Cladding Metal

  300 Series Stainless Steel Duplex & 410 Stainless Steel Aluminum Copper Alloys

  Nickel Alloys Titanium Zirconium Tantalum

• Base Metal Plate
  • Carbon Steel, A-516
  • 300 Series Stainless Steel
  • Aluminum
  Forging
  • Carbon Steel A-266, A-350
  • Alloy Steel, A-182

• Explosive detonation that releases high energy creates metallurgical weld between metal plates
• Surfaces of the metals are ground and fixed parallel to each other
• Explosive powder which is specially made is placed on the cladder surface
• Detonation front moves evenly from the initiator over the cladder surface
• Using a particular impact angle and velocity, the Cladding Metal is collided with the backer
• A thin sheet of mating surface is spalled as a jet when momentum is exchanged
• Spalled metal and oxides are carried by the jet in front of the collision point
• At the wavy weld line, a thin layer of â��Micro-fusionâ�� is formed which is 10.5 inch thick
• Metallurgical weld gets solidified over the total surface when metals are forced into close contact by several million psi forces
• Bulk heating of metals is prevented by the speedy explosive detonation
• NEON ALLOYS process makes sure that important physical properties of the Backer material and corrosion proof ability of the Cladding material is retained.

• Excellent finishing
• First-rate mechanical properties
• Good resistance to oxidation
• Corrosion resistance
• Long service life
• Cost-effective performance

• Tube-sheet blanks
• Heads
• Rolled cylinders
• Metallic vessels
