50Hz/60Hz Clamp On Current Probe

₹ 10,800 / Set

MOQ1 Piece(s)
Frequency50Hz/60Hz
Number Of FlowerClamp on current probe
Primary Current200A(max)
Voltage Range600AC (isolated condation)
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Frequency50Hz/60Hz
Number Of FlowerClamp on current probe
Weight400g
Voltage Range600AC (isolated condation)
Ratio1000:1 or 2000:1
Primary Current200A(max)
Isolation Voltage3KV/Min
Secondary Current200mA(max)
Operating Temperature-25°C to +70°C
Accuracy0.1%

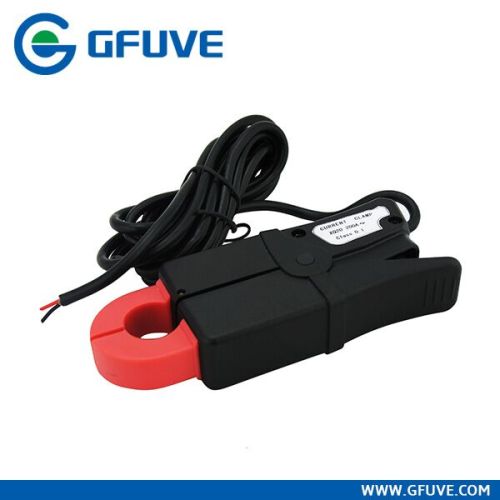

We are offering clamp on current probe.
Product description
high precision standard mini clamp-on current transformer ct belongs to high performance transformer field. It is a high accuracy ac current transformer which can measure and analyze a variety of electric parameter without power outage, and the difficult part in technology development is that the high quality magnetic core requests open freely.
Applications
power quality measuring
large industrial loads
measuring around cable bundles
power load monitoring
waveform analysis
measuring instruments
electric energy meter calibrator (on site)
double clamp type ground resistance tester
double clamp type phase volt-ampere meter
digital multi-meter
multi-function energy meter
oscilloscope
power quality analyzer
matched instruments
calibration instrument on site
features
measurement range of 1ma to 200a ac
small, compact size
improved ergonomic design and easy operation
conforms to en 61010, 600v cat iii
low phase shift for power measurement.
