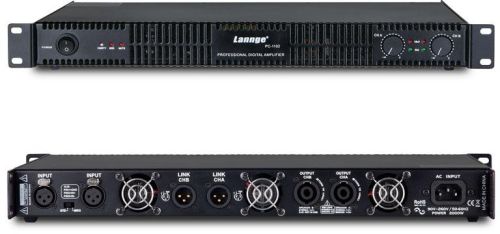

CLASS D DIGITAL POWER AMPLIFIER PC-1102 1U 2x1000w

Main Feature:
1. Class D digital technology with high efficiency, save energy and run in low temperature.
2. Balanced input stereo (two ways) has two modes for selection, one is stereo and the other is bridging.
3. Functions of independent limiting, overload, overheating will protect the circuit.
4. Using NTC soft start up and PFC automatic voltage regulator circuit, so that it can work in AC-90V-240V.
5. Every channel has protection function for over voltage, overheating and overload.
6. Automatic limiting function can prevent the speaker from being damaged.
7. The class D amplifier performs surprisingly with the driving bass.
8. Equipped with high quality imported components.
Technical Specifications:
NOISE: 20Hz-20kHz
OPERATION MODE: Knob Control
CHANNEL: 2 channels
STEREO OUTPUT POWER 8 ohms: 1000W+1000W
STEREO OUTPUT POWER 4 ohms: 1800W+1800W
STEREO OUTPUT POWER 2 ohms: 2000W
BRIDGED OUTPUT POWER 8 ohms: 3600W
BRIDGED OUTPUT POWER 4 ohms: 4000W
FREQUENCY RESPONSE: 20Hz-20KHz±1dB
THD+N (10%-1KHz):
SR: >20Vμs
NOISE INSULATION FACTOR (1KHz): >250
DYNAMIC RANGE: �95dB
SNR: �95dB
INPUT SENSITIVITY: 2Vrms
INPUT IMPEDANCE: balance 20K unbalance10K
POWER SPECIFICATION: AC 90-240V 50-60Hz (±10%)
