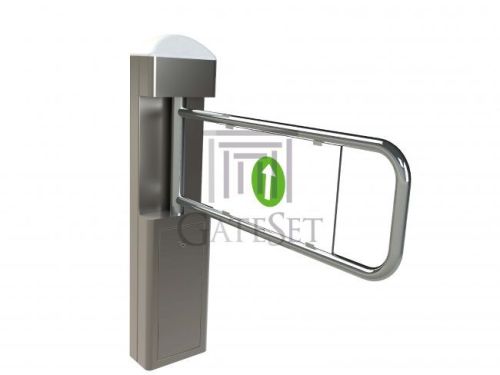

Classic Line VIP Swing Gates

Company Information

Ask for more detail from the seller

Report incorrect details

DesignModular design providing ease of installation and part replacement
OPERATING VOLTAGE115-240 V AC / 24V DC - 50-60 Hz
ACCESS CONTROLMicroprocessor based control for granting access Easy integration with all kind of access control equipment
ROTATION CONTROLMotion start and stop are controlled by PWM microprocessor
OPERATING TEMPERATURE-20 0C / + 70 0C
WARRANTY2 Years
MATERIAL - SWING ARMSteel profile frame with 32 mm diameter
POSITION DETECTIONPosition detection with two separate micro-switches at mechanics
CERTIFICATIONISO 9001:2008
OPERATION SAFETYElectrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded
CAPACITYHandling more than 30 passengers per minute
TREATMENT - OTHER PARTSAll other parts are coated against corrosion
NOMINAL / MAX. CURRENT100 mA / 500 mA
POWER CONSUMPTION30 W
SWING ARM LENGTH (mm)900
DIMENSIONS (mm)260 x 1050 x 1150 (WxLxH)
ACCESSORIESButton Control (standard) Remote Control Receiver and Transmitter (optional
INSTALLATIONStainless steel modular installation platform/base
DIRECTIONAL MODEOne directional motorized operation
ANTI PANIC FEATUREIn case of emergency, arm releases itself with excessive force, providing ease of evacuation
MATERIAL - MAIN BODY1.5 mm 304 grade stainless steel
