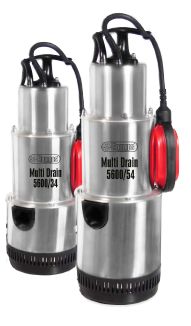

Metal Clean Water Submersible Deep Well Pumps, Power : Electric

The Multi Drain series incorporates Elpumps’ highest hydraulic performance submersible deepwell pumps, built to deliver optimum performance during periods of high demand.
Characterized by a robust build, a powerful 900W / 1200W motor, 3–5 high-performance impellers and  suction head of up to 54 m, Multi Drain pumps are perfect for all kinds of deep-well drainage tasks. The tough, durable, corrosion-proof materials offer high resistance to suspended solids. Multi Drain pumps are fitted with an integrated automatic float switch and have a low-consumption electric motor with thermal overload protection.
Ideal for pumping clean water from bored wells, irrigating gardens and green areas by flooding or sprinkler and for dewatering flooded areas, pools, fountains and hobby applications in general, Elpumps Multi Drain pumps are perfect for both domestic and light commercial use.

Structure:
The pump motor casing and shaft are composed of INOX stainless steel, the hydraulic case is constructed of cast iron, and the impellers are made of high-grade, corrosionproof NORYL PPO polymer. The shaft is jointly sealed with a spring-loaded seal ring (gasket) and a modern slide-ring axial seal.
Application:

• Automatic water pumping from bored wells, tanks or reservoirs
• Delivering clean water to operate high-pressure garden irrigation systems
• Irrigation in greenhouses, horticulture and small-scale agriculture
• Flood irrigation for gardens
• Water supply for livestock farming
• Lowering groundwater
• Rainwater harvesting
• Emptying of pools, ponds and flooded cellars

Features and Benefits

• Powerful 900W / 1200W motor
• Equipped with 3 or 5 impellers
• Maximum immersion depth of 5 meters
• Maximum suction head of up to 54 meters
• Professional IPX8 waterproof sealing
• First-class electric shock protection
• Durable, non-corrosive, rust-proof materials
• Integrated float switch, auto start/stop function
• Fitted with 20-meter H07 RN-F 3G 1 mm2 cable
• Thermal overload protection
• 2-year guarantee
