Clear Action Gate

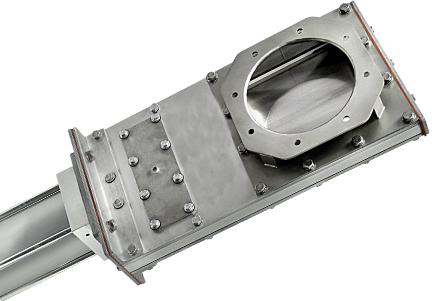

This valve is typically utilized in dilute phase pressure or vacuum systems or under atmospheric (gravity) conditions. This valve is similar in design to the Orifice Gate with the exception that the slide plate does not have an orifice (opening), but does have a machined square edge to minimize shearing and packing of materials. It utilizes dynamically loaded polymer seals (pressure plates) and provides positive material and air flow shut off up to 15 PSIG. The valve is ideally suited for materialpressure shut-off when located above a rotary airlock. It is important to note that this valve, when equipped with the optional air purge assembly, can be used in fine, sticky or packable material (not Sugar) applications.
STANDARD CONSTRUCTION FEATURES
Aluminum frame
304 Stainless steel blade
Live loaded, hard polymer seals
Stainless steel product contact surfaces
Stud bolt flanged tube connection
OPTIONAL FEATURES
Special service inlet for protection of the seals when closing on material or when handling hard or abrasive materials
Air, electric, hand wheel or hand crank operated
Single or double solenoid air control valve
Mechanical, proximity or reed type proof switches
NEMA 4, NEMA 6, NEMA 79, TEFC or XP electrical enclosure
316L Stainless steel product contact
Variable position openclosed air control assembly
Modified pipe flange mounting
ANSI 125# – 150# mounting
High temperature service (250°F or 400°F)
Water washdownsticky materials modifications – Electropolished blade with polyester or UHMW seals
