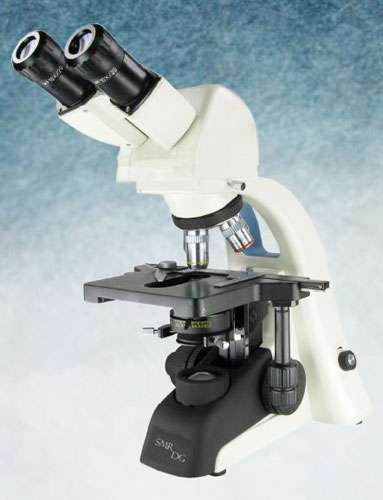

Clinical Microscope

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We offer Clinical Microscope. This is widely acknowledged in various advance research and experiments in various labs and research centers. Characteristics : time of exposure controllableadopt 5v....

View More Details

Send Enquiry

Product Details

We offer Clinical Microscope. This is widely acknowledged in various advance research and experiments in various labs and research centers.
Characteristics :
time of exposure controllableadopt 5v usb2.0 interface with power supplylow powereasy to link
digital microscopy solutions :
high definition, high resolutionadvanced color revivification, image with best performancestable image, all camera has been tested for long timeusb2.0 digital interface with direct output, without insert any cardlittle volume, easy to installtime of exposure controllableadopt 5v usb2.0 interface with power supply; low power, easy to link

Technical Specifications

Stand	C shaped, corrosion resistant, Anti mould treated
Viewing Head	Gemel - Style Binocular Tube with In-Bult Camera, Inclined 30 degree ,360 degree Rotatable, Interpupillary Distance:55-75mm
Eyepieces	High Eyepoint, Wide Field, Viewing Adjustable Wide Field Eyepieces 1 WF10X (Field of Line ?20mm), Optional WF16X, WF20X
Nosepiece	Inner inclined Quadruple Nosepiece
Objectives	PA Series- Plan Achromatic Objectives: 4X,10X,40X(S),100(O,S)
Image Device	SMR-DG 1.3 with 1.3 Mega pixel Color, 1/2" CMOS sensor SMR-DG 3.0 with 3.0 Mega pixel Color, 1/2"CMOS sensor
Resolution	SMR-DG 1.3: 1280x1024, 5.2um x 5.2um Pixel Size, 15 FPS Max Res., USB2.0 Digital Output SMR-DG 3.0: 2048x1536, 3.2um x 3.2um Pixel Size, 6 FPS Max Res USB2.0 Digital Output
Parameters	Electron Shutter: 1/16-1/1600, White Balance: Manual/Automatic, Signal-to-Noise: >52dB Controls Parameter: Brightness/Contrast Hue/Saturation, White Balance, Plus, Acutance
Software	Medical Pro (English Edition) Image analysis software for image capturing, analysis and measurement
Illumination	Built-in Critical, Halogen Lamp,12V/20W, Brightness Adjustable Optional LED Light Source, Brightness Adjustable
System Equipments	CPU : Pentium IV or Higher, RAM : 512 MB or more, Hard Disk Space : 100 MB or more, windows 98SE/ME/2000/XP, CD-Rom drive and USB 2.0 port
