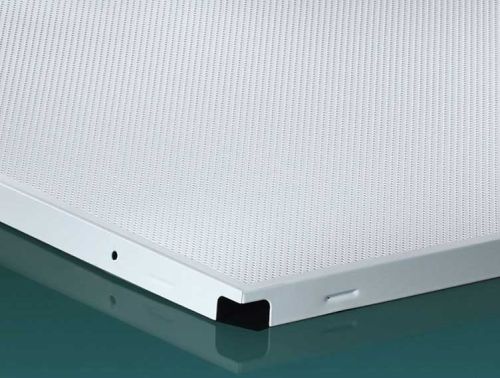

Clip-In Plain Tile

Clip-in false ceiling system with steel tile (600 mm x 600 mm) is manufactured out of 0. 50 mm thick regular modified polyester coated galvanized steel (z-120180 gms total zinc coating mass of both sides, 240 mpa yield stress). These tiles can have square or beveled edges. It is available in matt finish on the exposed side and a primer coating on the back. Optionally, they can be coil coated on the both sides in different standard color shades. Then the tile has 20-micron polyester coated finish and back coat of 5-micron alkyd primer. Two sides of each tile are raised and piped and stopped to ensure positive engagement into the spring clip-in profile, yet allow for demounting of individual tiles. The rigid suspension system consists of rows of 0. 5 mm galvanized steel clip-in profiles of size 38 mm x 20 mm, installed at 600 mm cc spacing to support the tiles. Suspension angles are suspended from the roof structure by gi ceiling brackets. They are joined to the clip-in profiles by hold-on clamps. The tiles planks are held in place by pressure clips. In the flexible system the hanger and butterfly clip replace the suspension angle. Wall angle are of size 24 mm x 24 mm and 0. 40. 5 mm thick. They are made of coil coated steel or aluminum matching the color of tiles. Perforation is of 2. 5 mm dia. At 5. 5 mm cc.
