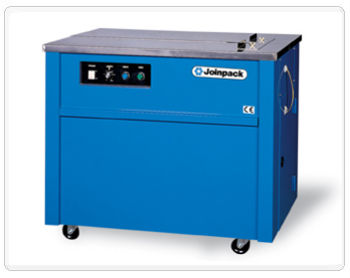

Close Frame Chain Type Semi-auto Strapping Machine

economical choice for limited strapping usage, bottom seal semi automatic strapping machines now offers you a simple option to apply packaging load securement with low maintenance costs and ease of operation, designed for all general industrial applications. it is equipped traditional chain type cams transmission and close type frame unit to meet your demand.
using polypropylene strap, this banding equipment which owns its aesthetic design and easy-to-operation characteristic is suitable for offices and shops. manufactured in taiwan, this semi-auto strapping machines provides you the best packaging experience.
◎reliable pcb and control components.
◎mechanical tension control.
◎motor shut off for energy saving.
◎easy to operate, less maintenance.
◎hinged table top.
◎closed cabinet.
cycle time: 2.5sec/strap
tension range: 15~45 kgs
strap width: 6, 9, 12, 15.5mm adjustable
sealing method: heating element
reel inside diameter: 200, 230, 280mm specified
power supply: 100/110/220/230/240v, 50/60hz, 1ph
table height: 780mm
power consumption: 0.4kw
layout dimension: l902 x d575 x h780 mm
machine weight: 90 kgs
[option]
soft tensioning system
stainless steel #304 housing(es-103m)
