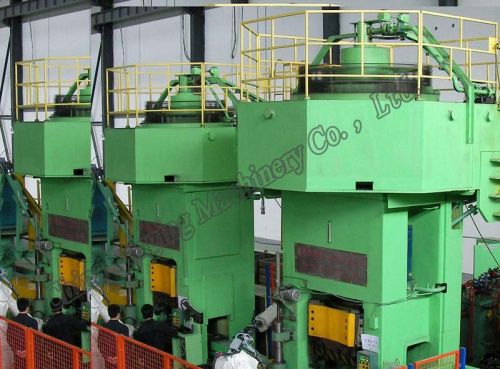

Clutch Operated Screw Press

We are offering clutch operated screw press characteristics:
1) combine the operation principles of crank press, hydraulic press and forging hammer.
Forming velocity in 0.5msec, and can be adjust between 0.25msec and 0.5msec for forming different materials.
2) high forming energy
3) high productivity
4) large available space
5) high automation
application:
precision forging, closed forging, upsetting, extruding, sizing and trimming.
Main technical parameter:
type unit j55-630 j55-800 j55-1000 j55-1600 j55-2000 j55-2500 j55-3150 j55-4000
nominal force kn 6300 8000 10000 16000 20000 25000 31500 40000
max. Striking force kn 8000 10000 12500 20000 25000 31500 40000 50000
ram speed (�)
mms 500 500 500 500 500 500 500 500
effective energy kj 100 150 220 420 500 750 850 1000
max. Stroke mm 335 355 375 425 450 500(625� 500(625) 530(625)
min.die space mm 560 630 670 800 860 960 960 1060
table size(fbã�lr) mm 900ã�750 950ã�800 1000ã�850 1250ã�1000 1200ã�1200 1400ã�1400 1450ã�1450 1600ã�1600
main motor power kw 30 37 45 90 90 132 132 180
total weight kg 32000 44000 56000 110000 180000 250000 290000 350000
other related service
undertake turnkey projects of forging products
design and manufacture of semi-automatic or automatic production line
process design, design and manufacture of die and die holder
design and manufacture of associate manipulator, automatic coolant spray system and die change device
