CLUTCH ROTOR ASSEMBLY

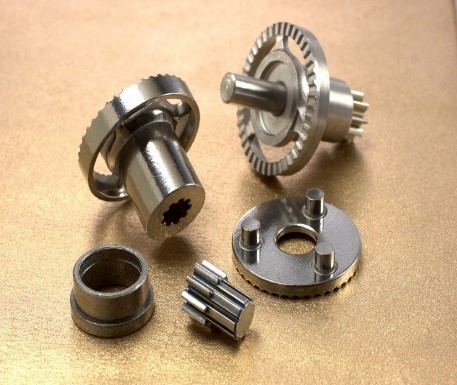

ASCO Sintering Company, Commerce, CA. won the grand prize in the ferrous category for a gear assembly, consisting of four parts – an armature, rotor blank, bearing and pinion gear. The assembly operates in a motor drive for automatic sliding minivan doors and opening and closing tailgates. Made from a PM phosphorous iron material, the parts have a density of 7.0 gcm3, an ultimate tensile strength of 45,000 psi and a yield strength of 32,000 psi. The parts are made to a net shape, except for the rotor which requires a turning operation on the hub. Innovative tooling provides the required density in the parts to satisfy magnetic and strength properties of the rotor.
